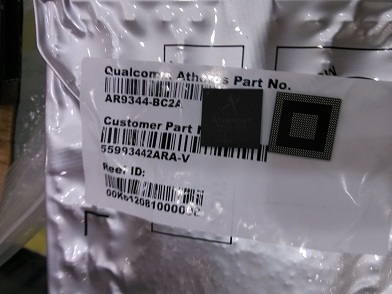

AR9344-BC2A AR9344-AC2A

AR9344-BC2A

AR9344-AC2A

AR9344 Highly-Integrated and Feature-Rich IEEE 802.11n 2x2
2.4/5 GHz Premium SoC for Advanced WLAN Platforms
General Description
The Atheros AR9344 is a highly integrated and
feature-rich IEEE 802.11n 2x2 2.4/5 GHz Systemon-
a-Chip (SoC) for advanced WLAN platforms.
It includes a MIPS 74Kc processor, PCI Express
1.1 Root Complex and Endpoint interfaces, five
port IEEE 802.3 Fast Ethernet Switch with MAC/
PHY, one MII/RGMII interface, one USB 2.0
MAC/PHY, and external memory interface for
serial Flash, DDR1 or DDR2, I2S/SPDIF-Out
audio interface, SLIC VOIP/PCM interface, two
UARTs, and GPIOs that can be used for LED
controls or other general purpose interface
configurations.
The AR9344 supports 802.11n operations up to
144 Mbps for 20 MHz and 300 Mbps for 40 MHz
respectively, and 802.11a/b/g data rates.
Additional features include Maximal Likelihood
(ML) decoding, Low-Density Parity Check
(LDPC), Maximal Ratio Combining (MRC), Tx
Beamforming (TxBF), and On-Chip One-Time
Programmable (OTP) memory.
The AR9344 PCIE Root Complex interface can be
used to connect to another Atheros single-chip
MAC/BB/radio for dual concurrent WLAN
applications. The AR9344 supports booting from
either NOR or NAND flash. If NOR flash is used
as boot codestore, an additional NAND flash
device can still be connected, for end-user multimedia
storage and other applications.
When connecting the AR9344 to an external host
through the PCIE Endpoint interface, or the USB
Device interface, the AR9344 can off load the host
CPU from computation- intensive functions,
allowing it to focus on its dedicated tasks.
Features
■ 74Kc MIPS processor with 64 KB I-Cache and
32 KB D-Cache, operating at up to 560 MHz
■ External 16- or 32-bit DDR1, DDR2 operating
at up to 225 MHz (450 M transfersc)
■ NAND and SPI NOR Flash memory support
■ 10/100 Ethernet Switch with five IEEE 802.3
Ethernet LAN ports
■ MII/RGMII interface
■ 802.3az Energy Efficient Ethernet compliant
■ Hardware-based NAT & ACL accelerators for
Ethernet interface
■ Both PCI Express 1.1 Root Complex and
Endpoint interfaces supported
simultaneously
■ One USB 2.0 controller with built-in MAC/
PHY supports Host or Device mode
■ Boot from external CPU via PCIE, USB, xMII,
eliminating need for external flash
■ I2S/SPDIF-out audio interface
■ SLIC for VOIP/PCM
■ One low-speed UART (115 Kbps), one highspeed
UART (3 Mbps), and multiple GPIO
pins for general purpose I/O
■ Fully integrated RF Front-End including PAs
and LNAs
■ Optional external LNA/PA
■ 25 MHz or 40 MHz reference clock input
■ 1.2 V switching regulator
■ Advanced power man
