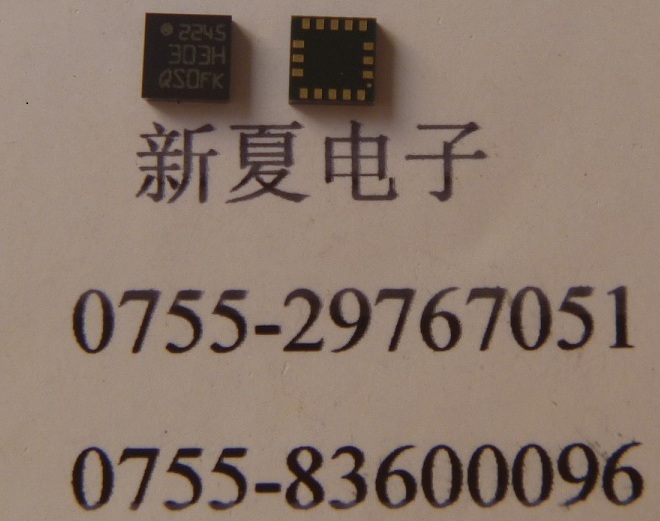

LSM303DTR运动传感器和磁性传感器

LSM303D电子罗盘模块：是一款超紧凑、高性能的电子罗盘模块在 3x3x1mm微型封装内集成运动传感器和磁性传感器，LSM303D模块的最大量程可达到±16g (线性加速度)和 ±12 Gauss (磁场).

LSM303DTR  Ultra compact high performance e-compass: 3D accelerometer and 3D magnetometer module

The LSM303D is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.

The LSM303D has linear acceleration full-scales of ±2g / ±4g / ±6g / ±8g / ±16g and a magnetic field full-scale of ±2 / ±4 / ±8 / ±12 gauss. All full-scales available are fully able by the user.

The LSM303D includes an I2C serial bus interface that supports standard and fast mode 100 kHz and 400 kHz and SPI serial standard interface.

The system can be configured to generate an interrupt signal for free-fall, motion detection and magnetic field detection. Thresholds and timing of interrupt generators are programmable by the end user on the fly.

Magnetic and accelerometer parts can be enabled or put into power-down mode separately.

The LSM303D is available in plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range -40 °C to +85 °C.

Key Features

• 3 magnetic field channels and 3 acceleration channels
• ±2/±4/±8/±12 gauss dynamically able magnetic full-scale
• ±2/±4/±6/±8/±16 g dynamically able linear acceleration full-scale
• 16-bit data output
• SPI / I²C serial interfaces
• Analog supply voltage 2.16 V to 3.6 V
• Power-down mode / low-power mode
• Programmable interrupt generators for free-fall, motion detection and magnetic field detection
• Embedded temperature sensor
• Embedded FIFO
• ECOPACK®, RoHS and &ldquoGreen&rdquo compliant
