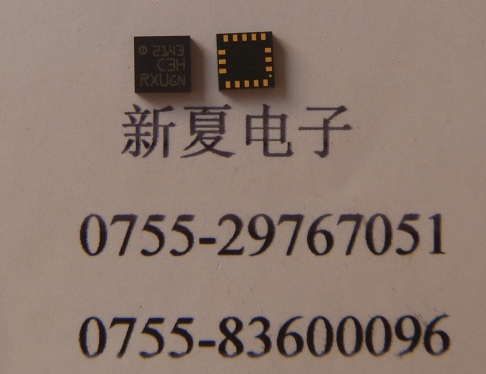

LIS3DHTR 加速传感器,封装:LGA 3X3X1MM
LIS3DH
MEMS digital output motion sensor ultra low-power high performance 3-axes "nano" accelerometer
The LIS3DH is an ultra low-power high performance three axes linear accelerometer belonging to the &ldquonano&rdquo family, with digital I2C/SPI serial interface standard output. The device features ultra low-power operational modes that allow advanced power saving and smart embedded functions.
The LIS3DH has dynamically user able full scales of ±2g/±4g/±8g/±16g and it is capable of measuring accelerations with output data rates 1 Hz to 5 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself. Thresholds and timing of interrupt generators are programmable by the end user on the fly. The LIS3DH has an integrated 32-level first in, first out (FIFO) buffer allowing the user to store data for host processor intervention reduction. The LIS3DH is available in small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range -40 °C to +85 °C.
Key Features
&bullWide supply voltage, 1.71 V to 3.6 V
&bullIndependent IOs supply (1.8 V) and supply voltage compatible
&bullUltra low-power mode consumptiondown to 2 &mu A
&bull±2g/±4g/±8g/±16g dynamically able full-scale
&bullI2C/SPI digital output interface
&bull16 bit data output
&bull2 independent programmable interrupt generators for free-fall and motion detection
&bull6D/4D orientation detection
&bullFree-fall detection
&bullMotion detection
&bullEmbedded temperature sensor
&bullEmbedded self-test
&bullEmbedded 96 levels of 16 bit data output FIFO
&bull10000 g high shock survivability
&bullECOPACK® RoHS and &ldquoGreen&rdquo compliant
